Compact Long Jib 4500 kg
FJA-19-456

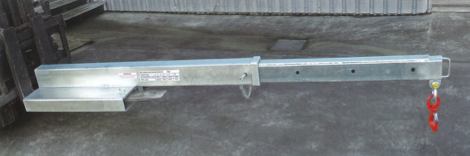

Versatile and very economical with a 3.5 m reach when fully extended, this jib is ideal for long loads to be carried. As the jib profile is low, your load can be lifted into tight spots near ceilings or under racking beams. This slip-on forklift attachment is held to the forklift with a safety chain. The jib’s overall length, when closed, is 2.03 m and has 6 lifting points from 870 mm to 3465 mm. This comes in a galvanised finish and includes a manual / certificate, safety chain and swivel hook.
Specifications:
- Safe Working Load: 4500 Kg
- Pocket Size 185 x 60 mm
- Pocket Centres: 290 mm.
- Load Centre: 870 mm.
- Horizontal Centre of Gravity: 1295 mm.
- Vertical Centre of Gravity: 125 mm
- Unit Weight: 140 Kg
- Manufactured strictly in accordance with AS 2359.1
