Forklift Jib,
Extendable 2.5 ton,
Model FJ2.5

Previous Product | Next Product
Product Description

    Model: FJ2.5

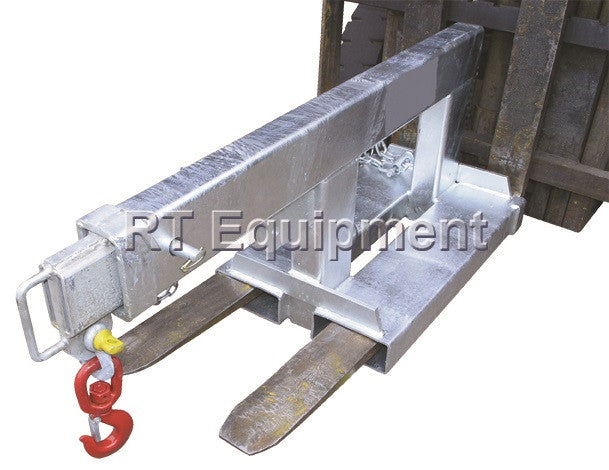

    • The type FJ2.5 jib is designed to slide on to the forks of your forklift, with a 1,960 mm reach and 1,300 mm collapsed length it is suitable for working in most applications.
    • Galvanised finish and comes with hook and shackle.



    Specifications

      Safe working load: 2,500 kg max.
      Fork pocket size: 185 x 65 mm
      Fork pocket centre: 275 mm
      Overall length: 1,300 mm (closed)
      Unit weight: 100 kg
      Load Centre: 790 mm
      Horizontal C of G: 630 mm
      Vertical C of G: 135 mm





      Note there are 4 reaching positions

      1)    790 mm reach    -     2,500 kg capacity
      2) 1,200 mm reach    -     1,200 kg capacity
      3) 1,580 mm reach    -        900 kg capacity
      4) 1,960 mm reach    -        750 kg capacity
