Model: RC 25 10A

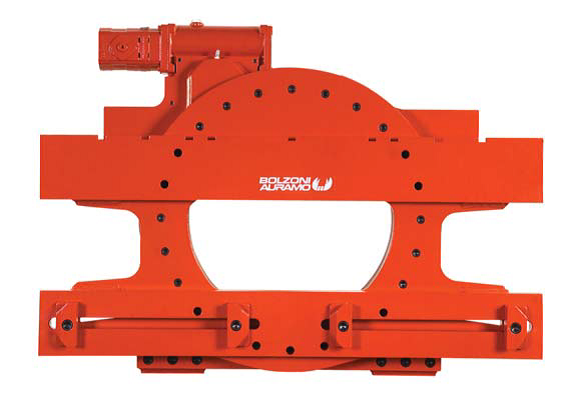

Model: RC 25 10A (without forks)
Capacity: 2,500 kg @ 500 mm LC
Fork Carriage Width: 980 mm
Opening Inside Forks: 178 mm (minimum)
Opening Outside Forks: 866 mm (maximum)
Weight: 183 Kg
Centre of Grav. (Hor): 76 mm
Effective Thickness: 142 mm
Height: 744 mm
Rotation: 360 degrees
Max Torque: 837 CN
Rotation Speed: 4.4 Rpm (with recommended oil flow)
Hydraulics: 1 hydraulic function
Mounting: ISO 2328 - 2A
Features and Benefits

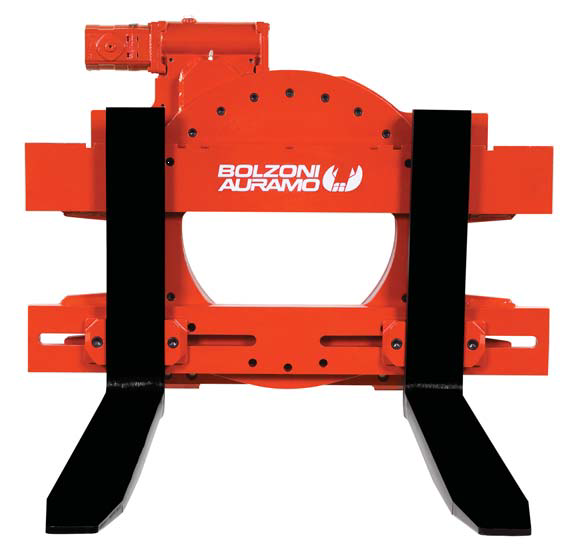

360-degree rotator with ISO-2328 fork carriage for applications requiring rotation.
Commonly used in industries where the working cycles require rotation or emptying of boxes or containers.
Castellated fork carriage for easy and fast forks positioning

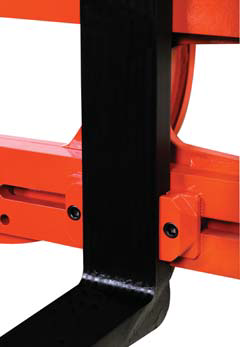

Safe, easy and fast forks mounting and positioning due to new fork fixing system
Open centre design and minimized overall dimensions ensure excellent visibility
High speed hydraulic motor – high rotation torque
Easier maintenance due to reduced wear and oil consumption motor
Motor mounting in either left or right side – can be changed onsite.
