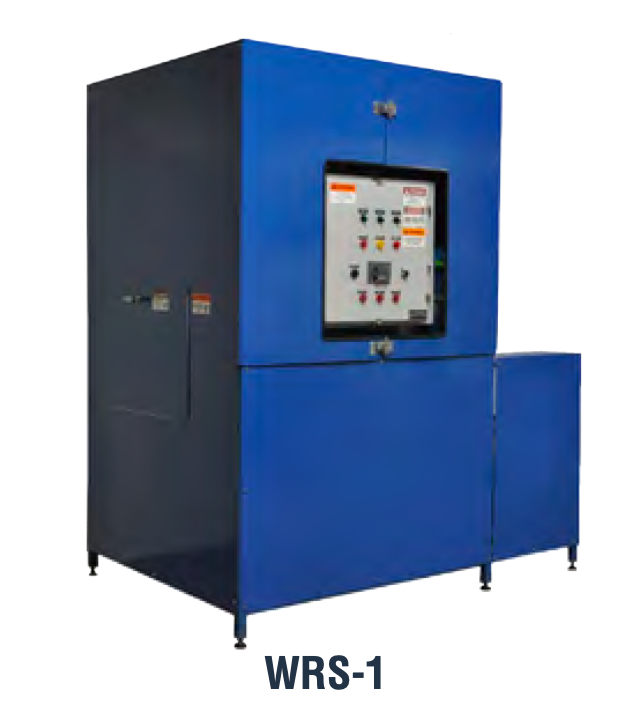

Wastewater Recycling Systems (WRS)

Wastewater Recycling Systems (WRS)


ENQUIRE NOW

FUNCTIONALITY

As the WRS receives dirty wastewater, an automatic pH adjustment control is activated to raise the water to a neutral pH level of 8. The wastewater is then treated with a reactive separating agent to encapsulate the contaminants and form large flocculent. Using gravity flow, the treated water is separated from the flocculent by passing through an automatic deep bed filter. The captured sludge
is conveyed to a sludge catch bin, where it dries and hardens into a non-hazardous, non-leachable sludge. The sludge is certified landfill friendly for standard trash disposal. The clean water can either be drained or held in a storage tank for reuse. This process can be performed in batches or in a closed loop system, continuously supplying clean water to a Battery Wash Cabinet (BWC).

FEATURES & BENEFITS

  • Reclaims wastewater at a rate of two gallons per minute

  • Automatic pH adjustment control neutralizes water for removal of hazardous materials

  • Specially formulated reactive separating agent used in flocculation process removes soils, hydrocarbons, metals, etc. from wastewater

  • Sludge generated is non-hazardous, non-leachable, and certified landfill friendly for standard trash disposal

  • Wash water effluent micron filtered both before & after treatment

  • Produces clean, reusable water

  • Visual and audible alarms for operator notification on low supply of paper, flocculent, or caustic

  • Alarm activation disables WRS, preventing untreated water from being output

  • Ozone purification removes bacteria for odor control (Standard on WRS-1, optional on WRS-MT2)

  • Independently lab tested and approved to safely process wastewater while meeting EPA and NJDEP regulations

  • WRS-2-KIT includes wash station transfer pump
